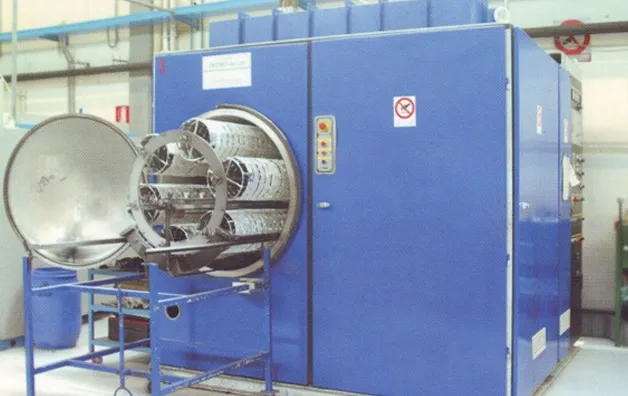

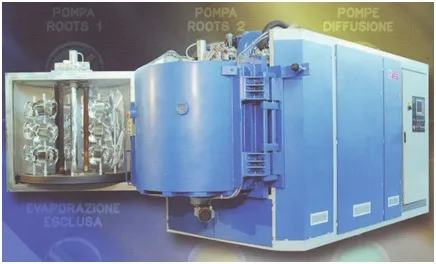

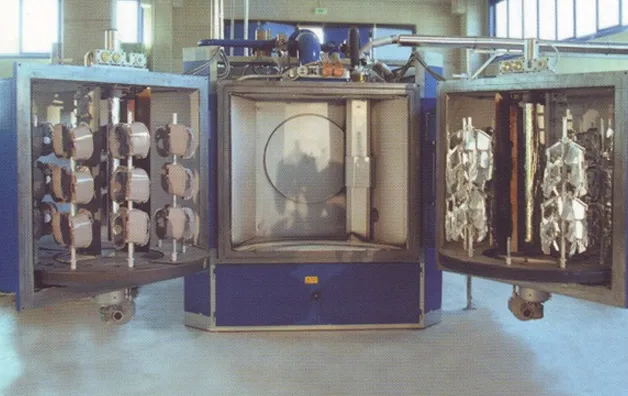

Vacuum Coater (Metallizer)
Brand : Technovacuum
Description : เครื่องเคลือบโลหะระบบสุญญากาศ ผลิต
ในประเทศอิตาลี ยี่ห้อ Techno vacuum ก่อตั้งมาตั้งแต่
ปี คศ.1991
• Protector (vacuum polymerization, transparent ionic coating)
• Multilayer deposition (mineral, alloy and metal stratification)SiOX-MgF2-TiO-Cr-Al etc.
• Automatic cryotrap (LN2 or polycold)
• Thickness gauge (automatic control of deposited film)
• Certification of all production cycles(prints with process graphics for each cycle)
Technical Specification
| Impianti Standard Standard Equipment | Metallizzatori Verticali Vertical Metallizers | Metallizzatori Orizzontali Horizontal Metallizers | ||||
|---|---|---|---|---|---|---|
| Modello - Model | ABV 1100 | ABV 1500 | ABV 1800 | ABO 1100 | ABO 1500 | ABO 1800 |
| Diametro Interno Camera **mm. Inside Diameter Chamber **in. | 1100 44 | 1500 60 | 1800 72 | 1100 44 | 1500 60 | 1800 72 |
| Altezza / Lunghezza Camera **mm. Height / Length Chamber **in. | 1300/1600 52/64 | 1300/1600 52/64 | 1300/1600 52/64 | 1300/1600 52/64 | 1600/2300 64/92 | 1600/2300 64/92 |
| Altazza Satellite **mm. Planer Height *in. | 1000/1300 40/52 | 1000/1300 40/52 | 1000/1300 40/52 | 1000/1300 40/52 | 1300/2000 52/80 | 1300/2000 52/80 |
| Satellti - Planet** diam./Num. mm/N* | 350/6 290/8 | 485/6 370/9 290/12 | 585/6 445/9 355/12 | 350/6 290/8 | 430/6 320/9 240/12 | 530/6 390/9 300/12 |
| Pompe-PUMPS** Rotativa (50 Hz) m3/h Rotary pump(60 Hz) CFm | 250 180 | 600 420 | 600/2 420/2 | 250 180 | 600/2 420/2 | 600/2/3 420/2/3 |
| Roots (50 Hz) m3/h Roots(60 Hz) cFm | 1000+4000 700+2800 | 100+4000 700+2800 | 2000+8000 1400+5600 | 1000+4000 700+2800 | 2000+8000 1400+5600 | 2000+8000 1400+5600 |
| Diffusioni l/sec. /num. Diffusion l/sec. /num. | 20000/1 | 20000/2 | 20000/2 32000/2 | 20000/1 | 32000/2 50000/2 | 50000/2 50000/3 |
| Cryo Trap num. (LN2 º Polycold) | 1 | 2/3 | 2/3 | 1 | 2/3 | 3/4 |
| Tempo DI Ciclo a 2x10-4 mbar* Pump Down Time To 2x10-4 mbar* | 3" | 3" | 3" | 3" | 4" | 4" |
** Dinensioni Diverse a Richiesta - Others Dimensions to Request
